    滤波器工具

    切比雪夫带通滤波器设计 | Chebyshev BPF Calculator

    2012-10-10 点击:0 我要评论(0)



    n fc[MHz] BW[MHz] Zo[ohm] ripple[dB]

     >>>

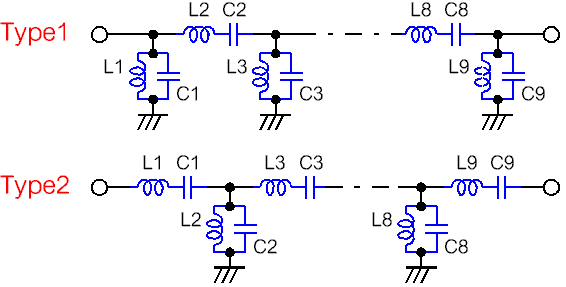

    Type1L1L2L3L4L5L6L7L8L9
    [nH]
    C1C2C3C4C5C6C7C8C9
    [pF]


    Type2L1L2L3L4L5L6L7L8L9
    [nH]
    C1C2C3C4C5C6C7C8C9
    [pF]

    [ How to use ]
    1. Input resonant circuit number (n), center frequency (fc), bandwidth (BW),
    characteristic impedance (Zo), ripple, and click on [ Calculate ] button.
    2. A calculation result is indicated.

    [ Note ] The number of resonant circuits is only an odd number individual.
    (Even if an even number is inputted to n, 1 is added automatically,
    and changed into the odd number.)
